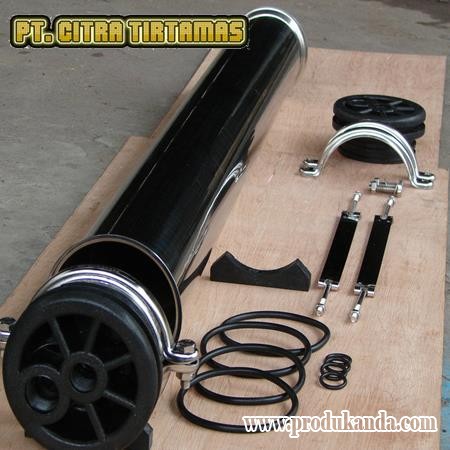

Membrane Housing Stainless Steel adalah tabung untuk menempatkan RO Membrane yang terbuat dari material stainless steel. Membrane Housing SS ini harus disesuaikan dengan ukuran diameter Membrane RO. PT Citra Tirtamas menjual Stainless Steel Membrane Housing dengan harga yang kompetitif, terdiri dari 2 model yaitu untuk ukuran diameter 2,5 inch dan diameter 4 inch. SS Membrane Housing ini memiliki pressure 300 psi/20 bar dan letak koneksinya di End Port.
Membrane Housing Stainless Steel 2,5 inch
1. Type SS2514E
- For Membrane Size (Dia × L) : 2.5" × 14" (6.4 cm × 35 cm)
- Vessel Dimensions (Dia × L) : 2.5" × 16" (6.4 cm × 41 cm)
- Connection Feed : 3/8" (13 mm) FNPT
- Connection Brine : 3/8" (13 mm) FNPT
- Connection Product : 1/4" (6 mm) FNPT
- Configuration : End Entry
- End Plug Style : Clamp-On
- Maximum Operating Pressures : 300 psi (20 bar)
2. Type SS2521E
- For Membrane Size (Dia × L) : 2.5" × 21" (6.4 cm × 53 cm)
- Vessel Dimensions (Dia × L) : 2.5" × 22.5" (6.4 cm × 57 cm)
- Connection Feed : 3/8" (13 mm) FNPT
- Connection Brine : 3/8" (13 mm) FNPT
- Connection Product : 1/4" (6 mm) FNPT
- Configuration : End Entry
- End Plug Style : Clamp-On
- Maximum Operating Pressures : 300 psi (20 bar)
3. Type SS2540E
- For Membrane Size (Dia × L) : 2.5" × 40" (6.4 cm × 102 cm)
- Vessel Dimensions (Dia × L) : 2.5" × 45" (6.4 cm × 114 cm)
- Connection Feed : 3/8" (13 mm) FNPT
- Connection Brine : 3/8" (13 mm) FNPT
- Connection Product : 1/4" (6 mm) FNPT
- Configuration : End Entry
- End Plug Style : Clamp-On
- Maximum Operating Pressures : 300 psi (20 bar)
Membrane Housing Stainless Steel 4 inch
1. Type SS4040E
- For Membrane Size (Dia × L) : 4.0" × 40" (10 cm × 102 cm)
- Vessel Dimensions (Dia × L) : 4.0" × 45" (10 cm × 114 cm)
- Connection Feed : ½" (13 mm) FNPT
- Connection Brine : ½" (13 mm) FNPT
- Connection Product : ½" (13 mm) FNPT
- Configuration : End Entry
- End Plug Style : Clamp-On
- Maximum Operating Pressures : 300 psi (20 bar)
2. Type SS4080E
- For Membrane Size (Dia × L) : (Qty 2) 4.0" × 40" (10 cm × 102 cm)
- Vessel Dimensions (Dia × L) : 4.0" × 85" (10 cm × 216 cm)
- Connection Feed : ¾" (19 mm) FNPT
- Connection Brine : ¾" (19 mm) FNPT
- Connection Product : ½" (13 mm) FNPT
- Configuration : End Entry
- End Plug Style : Clamp-On
- Maximum Operating Pressures : 300 psi (20 bar)
